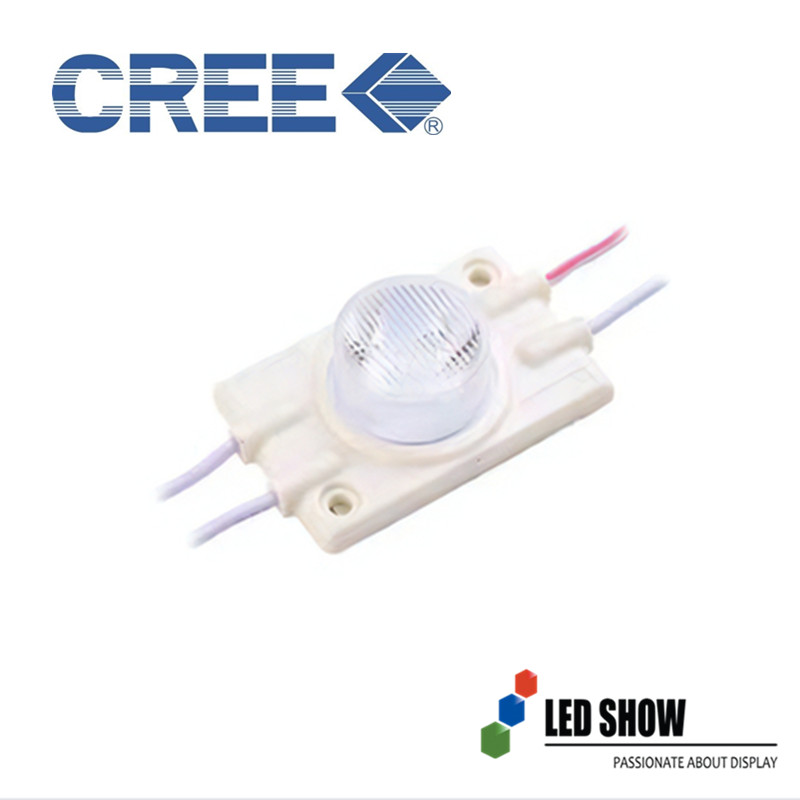

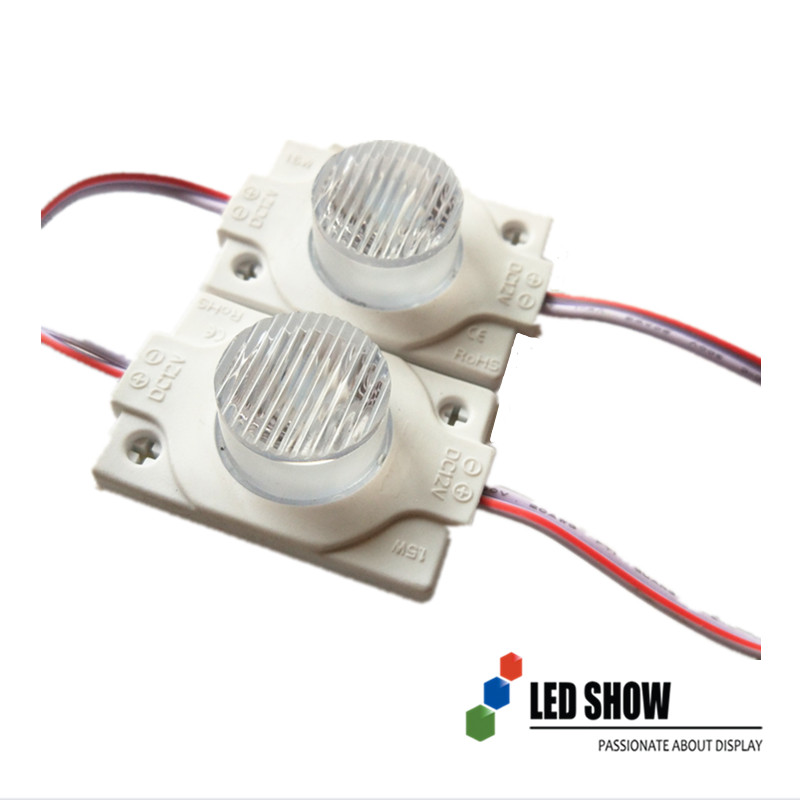

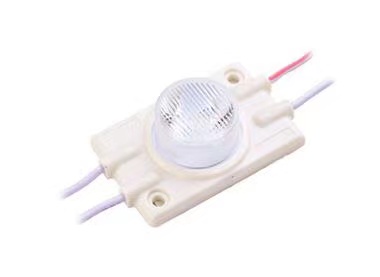

5 years warranty Dim CREE LED module for 6-20cm depth sign

Product ID : TK-ZS010C-030
Product Tags : Advertising usedDimmableEasy carriageEasy installationHigh brightnessHigh power LEDOutdoor usageUniform lighting effectWaterproof IP65
Product Attributes :

LED chip: CREE 3535

Waterproof level: IP65

Size: 31*14.7mm

Voltage: 12V

Warranty: 5 Years

Wattage: 3W

Lumen: 240-270lm

String: 20LEDs/String

Product Description

5 years warranty 3W Dimmable CREE high power LED module for 6-20cm depth light box


Parameter

Symbol

Rating

Unit



Min.

Typ.

Max.

Input Voltage

Vin

12

12

13

V

Input Current

I(rms)




A



Operating Tem.

Ta

-

45

65

℃

Operating Hum.

Ha

5%-95%(No Water)

-

Storage Tem.

Ts

-30~60

℃

※DC12V input voltage is recommended.


Model

Power

Luminous Flux (lm)

Luminous Intensity（MCD）

Color Temperature

Waterproof level

Degree


W

Min

Typical

Max

k


2θ1/2

TK-010C-030

3


240

270

2700~7000

IP65

6*45

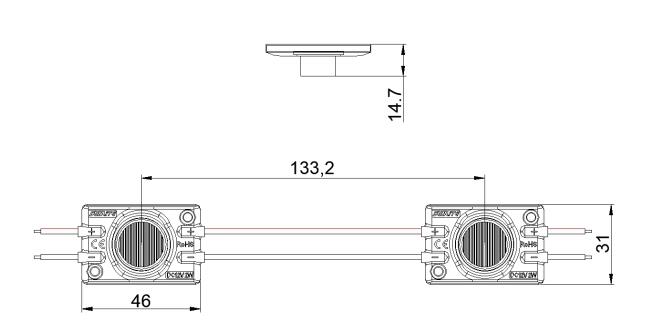

Notes：

1. All dimensions are in millimeters.

2. Tolerance is 0.5 mm unless otherwise specified.

3. Specifications are subject to change without notice.

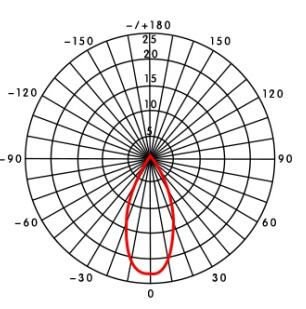

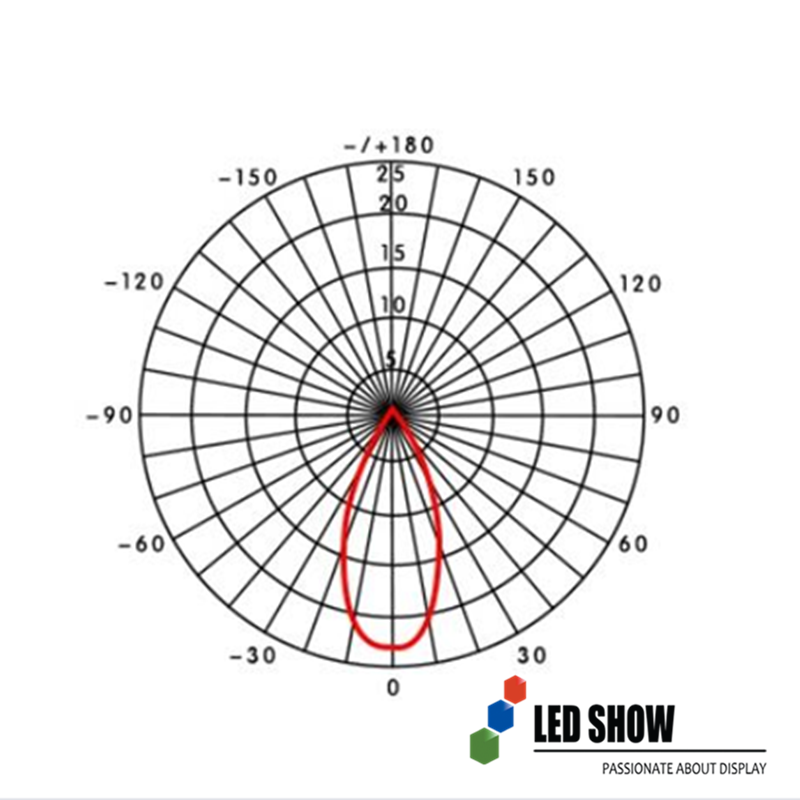

Optical Data Distribution Map
