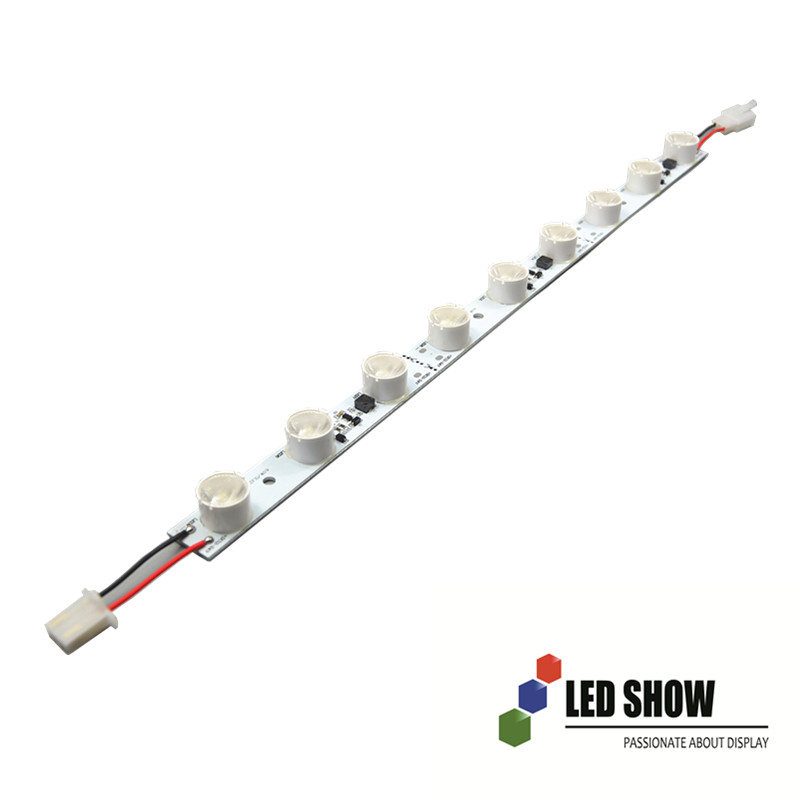

CREE bar lights

CREE bar lights

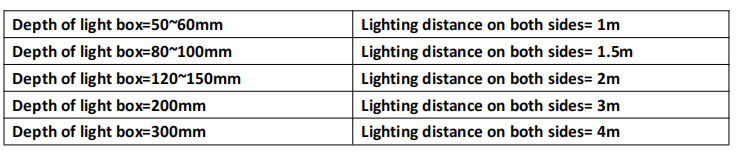

CREE bar lights is a lighting solution specially made for advertising lightbox which thickness is more than 60mm for single side lighting, 120mm for double sides lighting.

Wider voltage DC12-30V input/output voltage of CREE bar lights is very safe for usage.

The inner constant voltage curcuit design and outer constant current design of osram led bar make the lights working more steady.

Sizes of light strips led:

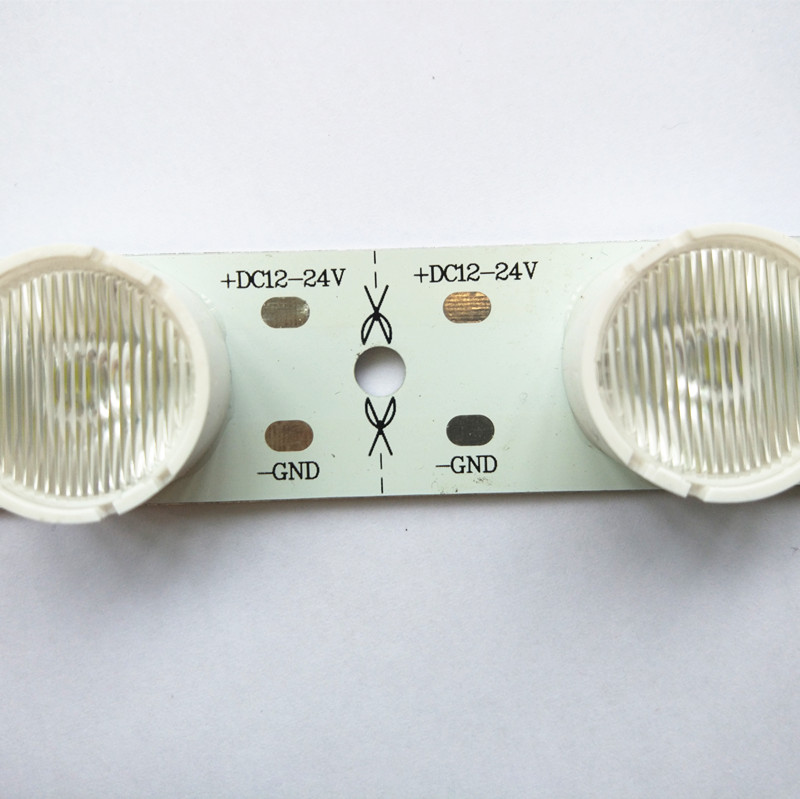

Each 3 LEDs cuttable.

Parameter of CREE bar lights:

Specification of light strips led:

Remarks:

DC24V input voltage is suggested for this lightstrips. LED circuit works within the constant current curve, when LED bar input voltage is lower, the input current is higher, because the total power of ad LED should be constant, when the input voltage is higher, the input current is lower. The lower current has higher efficiency and can reduce the temperature on the aluminum board. Simply to say, DC24V input voltage has lower working temperature than that of DC12V input voltage.

Curcuit design of cree led strip:

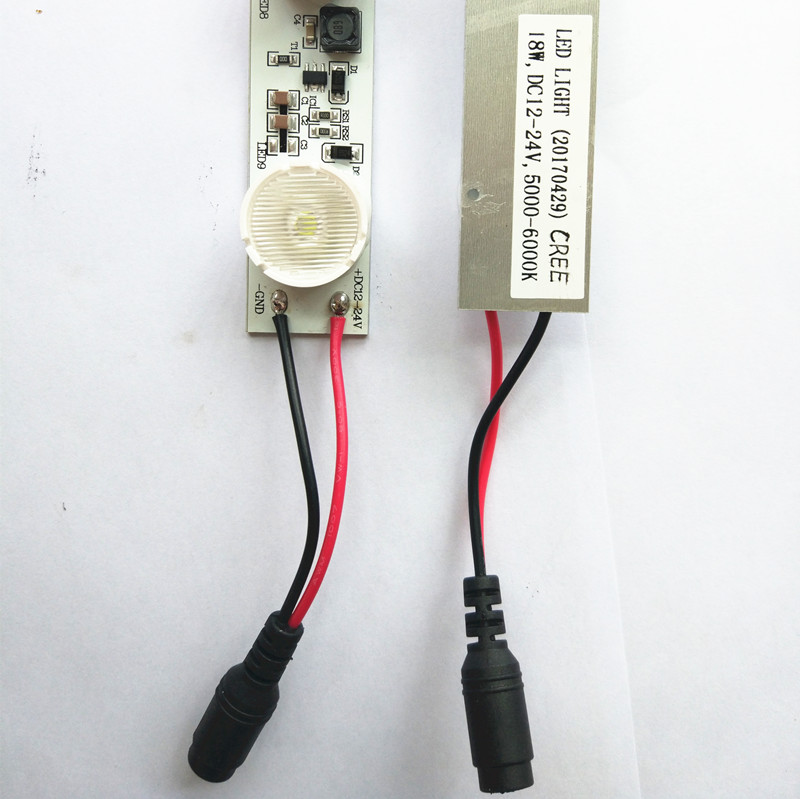

Connection Instruction of cree led strip:

Installation Instruction:

Come and contact us, you deserve good quality and considerate service from us.
